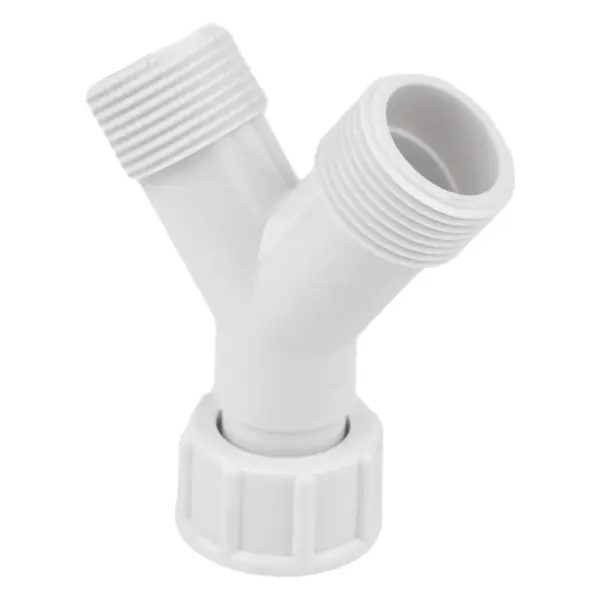

Y Splitter Joiner High Quality Plastic Y Connector Adapter for Dishwasher and Washing Machine Connect Two Hoses with Ease
Y Splitter Joiner High Quality Plastic Y Connector Adapter for Dishwasher and Washing Machine Connect Two Hoses with Ease د.ع1,500.00
Back to products

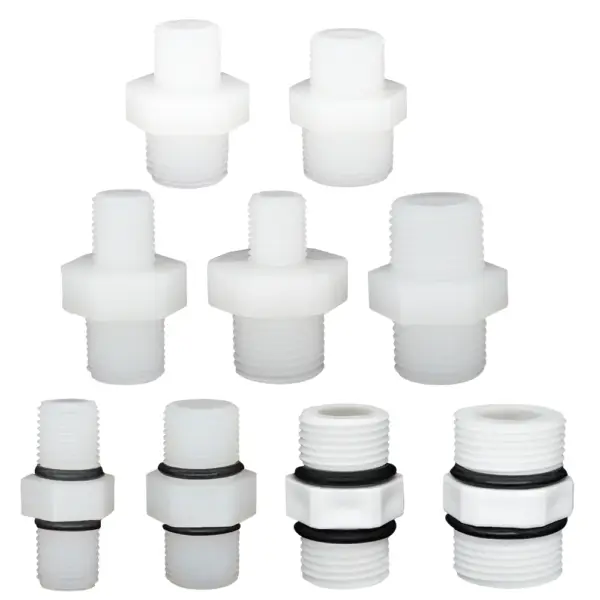

YQBS 1/4" 3/8" 1/2" Male Thread Pipe Connector Fitting Plastic Nylon With Rubber Ring Straight Connect Aquarium RO Water
YQBS 1/4" 3/8" 1/2" Male Thread Pipe Connector Fitting Plastic Nylon With Rubber Ring Straight Connect Aquarium RO Water Price range: د.ع1,400.00 through د.ع1,500.00

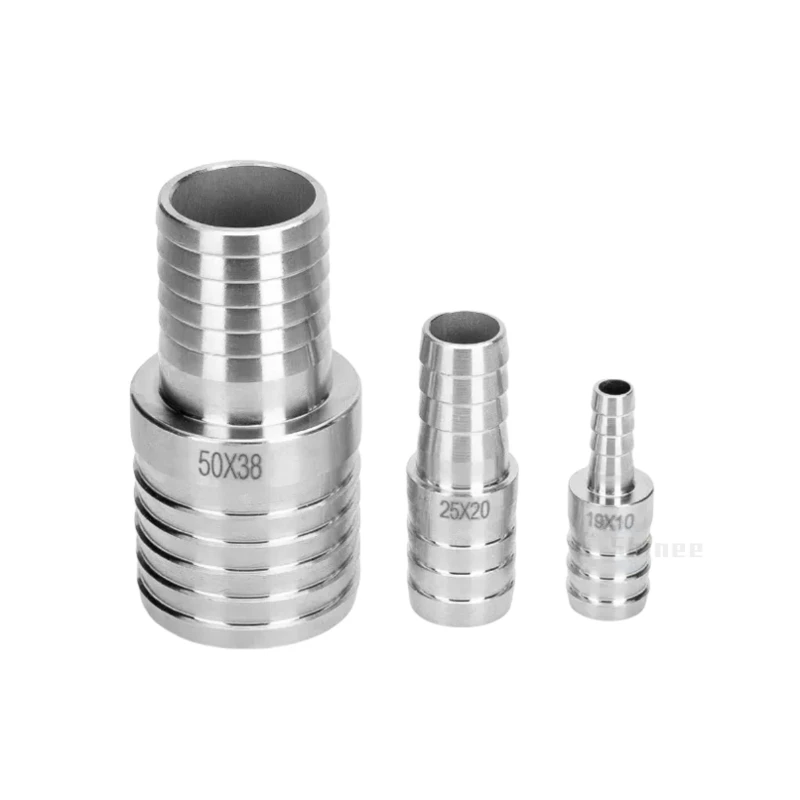

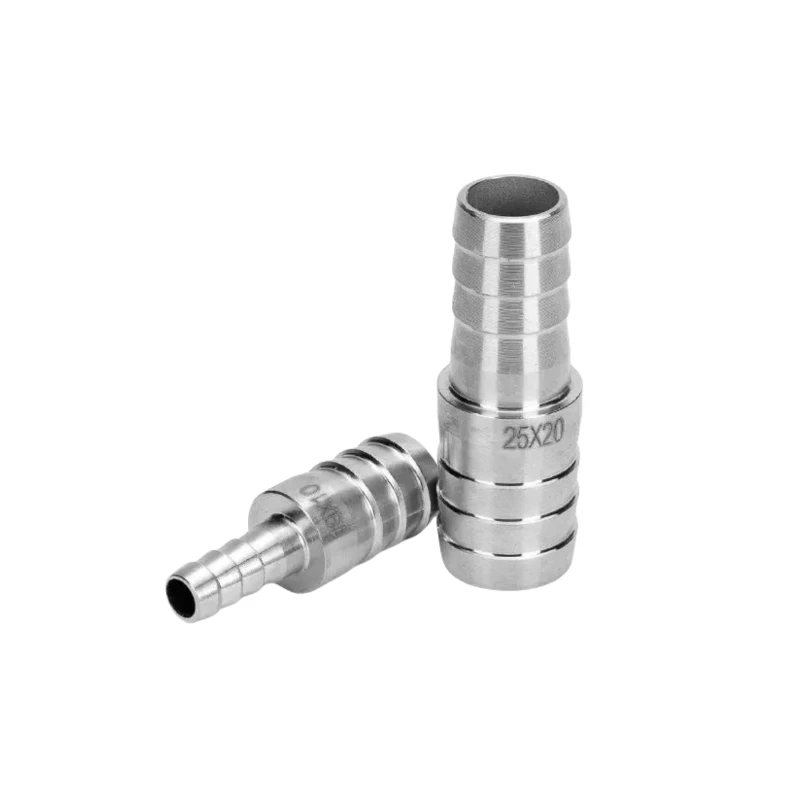

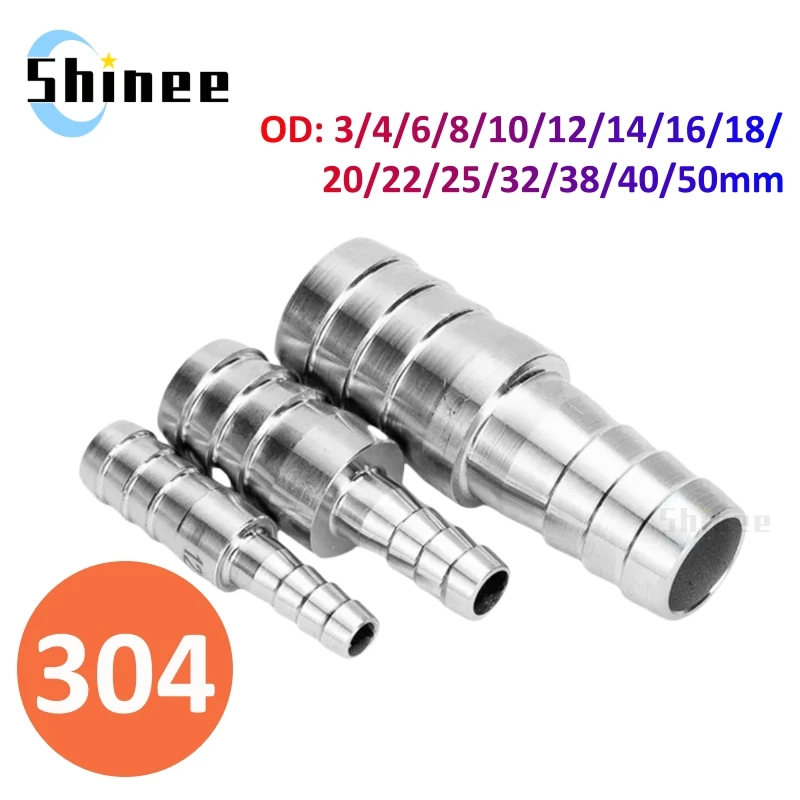

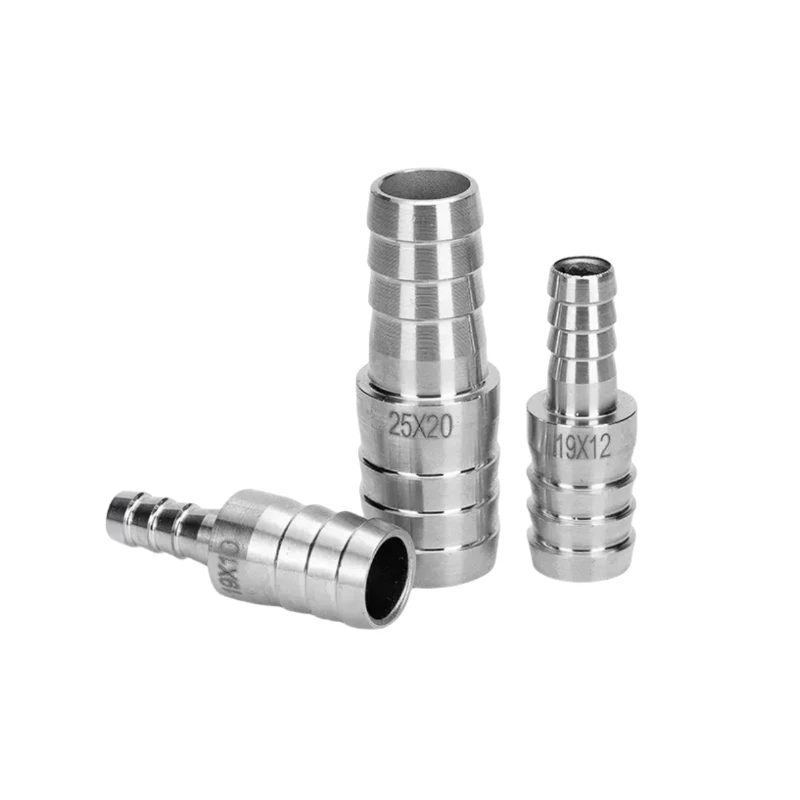

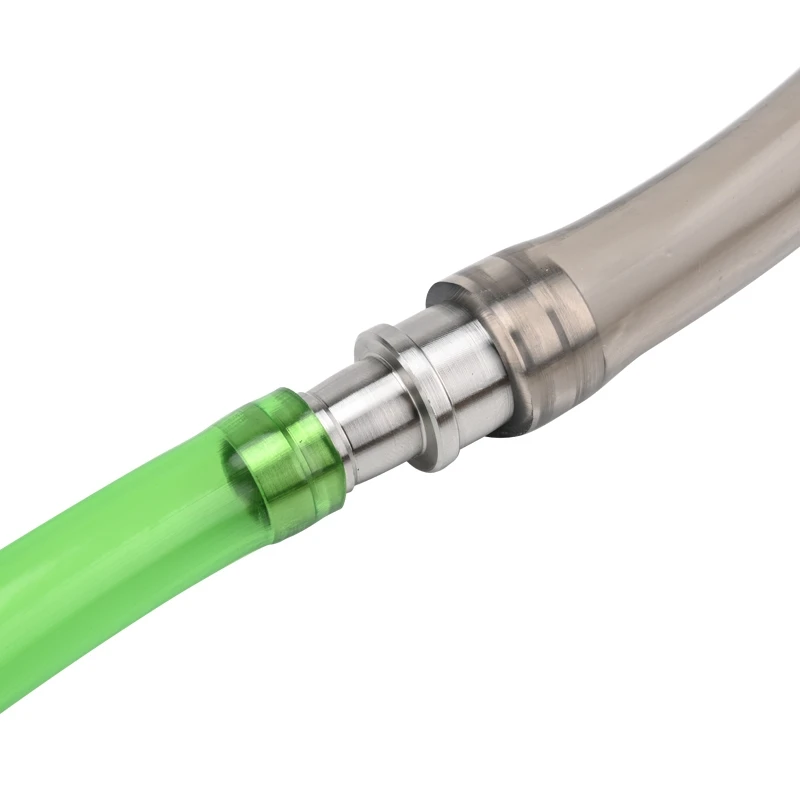

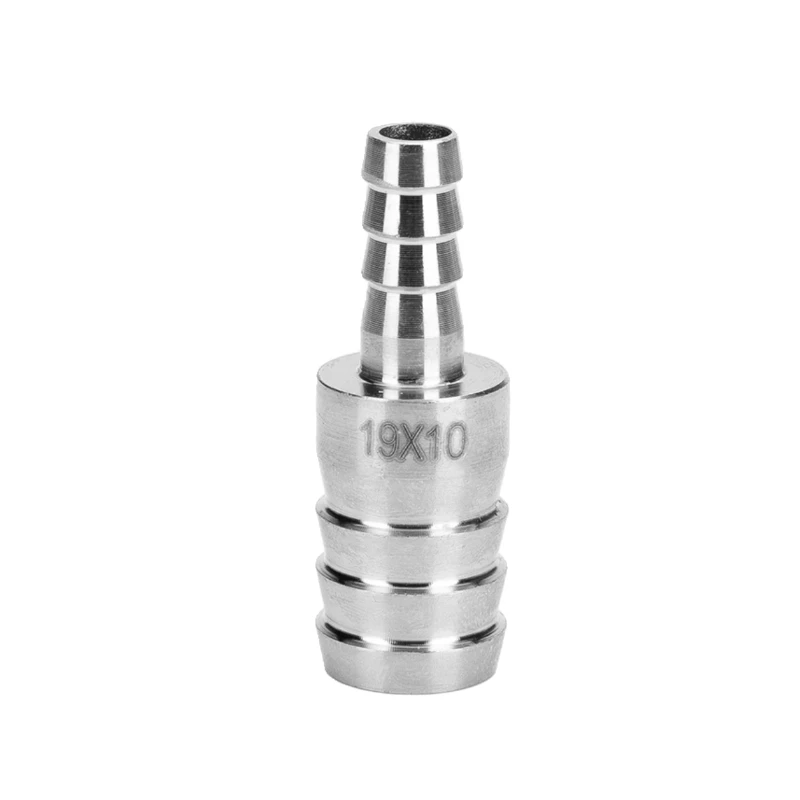

3 4 6 8 10 12 14 16 19 20 25 32 50mm Hose Barb Equal Reducing 304 Stainless Steel Bulkhead Hosetail Pipe Fitting Connector Panel

Price range: د.ع6,200.02 through د.ع42,400.04

Add to wishlist
7 People watching this product now!
SKU: 3256807135347042 Category:
Description
  • Hign-concerned Chemical: None
  • Hose Inner Diameter: 6mm
  • Connection: Male
  • Head Code: Hexagon
  • Technics: Casting
  • Model Number: PC
  • Shape: Equal
  • Type: Bushing
  • Material: Copper
  • Origin: Mainland China
  • Certification: CE
  • Connection: Male/femal
  • Thread Diameter(mm): 3/4/6/8/10/12/14/16/18/20/22/25/32/38/40/50mm
  • Application: Pneumatic fittings,



3 4 6 8 10 12 14 16 19 20 25 32 50mm Hose Barb Equal Reducing 304 Stainless Steel Bulkhead Hosetail Pipe Fitting Connector Panel



Taper thread, will be more and more tight when rotating, tight with sealing,
need to use raw material belt and other sealing materials, for high
pressure pipeline

Cylindrical thread, no taper, more relaxed when rotating, the connection
is not sealed, need to use sealing gasket to complete tight, for low
pressure pipeline











How to identify the real 304 stainless steel

Feature:

Anti-corrosion, pollution-free,glossy,high hardness,depth of thread, strong and durable

Suitable for air, water, Gas, fuel , Oil.

Easy and convenient to install.



Specification:

Product Name :      304 Stainless Pipe Fittings

Material :                304 stainless steel

Type:                      Straight / Elbow / Y 3 WAY / T 3 WAY / X 4 WAY (Cross)

OD:                       3/4/6/8/10/12/13/14/15/16/17/18/19/20/21/22/24/25/26/27/28/30/32/34/37/38/40/41/50mm

Rough process:     Casting/Cold Heading

Processing technology:   CNC precision machining

Suitable for media:          Water, oil, gas, and certain corrosive liquids (W/O/G)

Thread type:                    ZG/R/BSPT (tapered pipe thread)

Under pressure:              20kg (150LB)

Work pressure:               1Mpa 143 PSI

Industrial pressure:         1/6Mpa

Working temperature:     -20 °~450 °

Surface treatment:       Stainless steel natural color

Packing list

1 x 304 Stainless Pipe Fitting

Size:

DN6=1/8″≈9.5mm≈0.374 inch

DN8=1/4″≈12.5mm≈0.4724 inch

DN10=3/8″≈16mm≈0.6299 inch

DN15=1/2″≈20mm≈0.7874 inch

DN20=3/4″≈26mm≈1.0236 inch

DN25=1″≈32mm≈1.2398 inch

DN32=1-1/4″≈G1.2≈41.5mm≈1.6338 inch

DN40=1-1/2″≈G1.5≈47.5mm≈1.8503 inch

DN50=2″≈59.6mm≈2.346 inch

DN65=2-1/2″≈G2.5≈75mm≈2.952 inch

DN80=3″≈85.5mm≈3.444 inch

DN100=3″≈111mm≈4.37 inch

Note:

Please allow minor error due to manual measurement. Thank you!

Due to the difference between different monitors, the picture may not reflect the actual color of the item.
