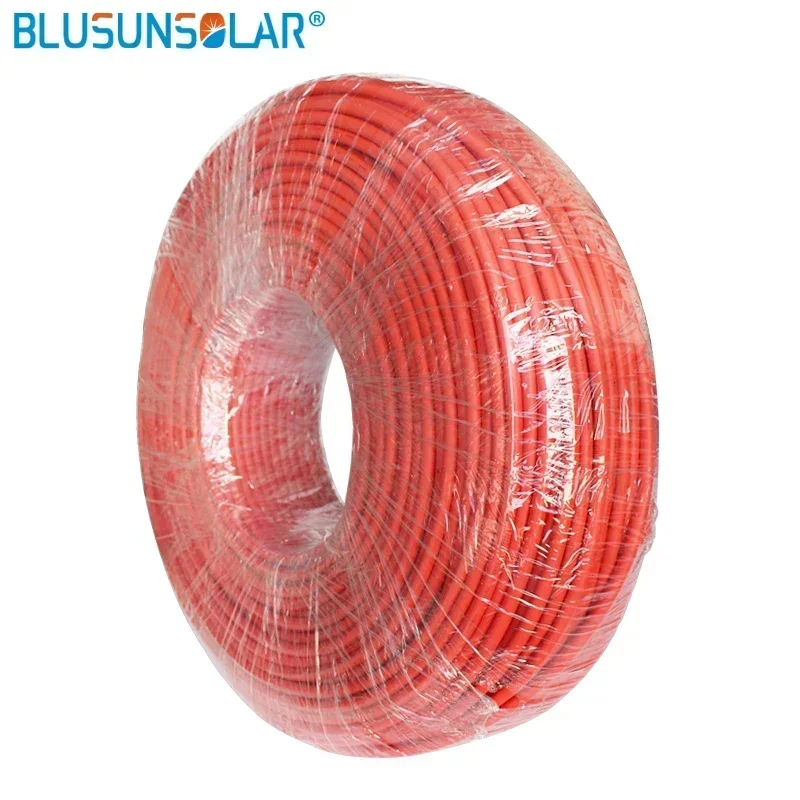

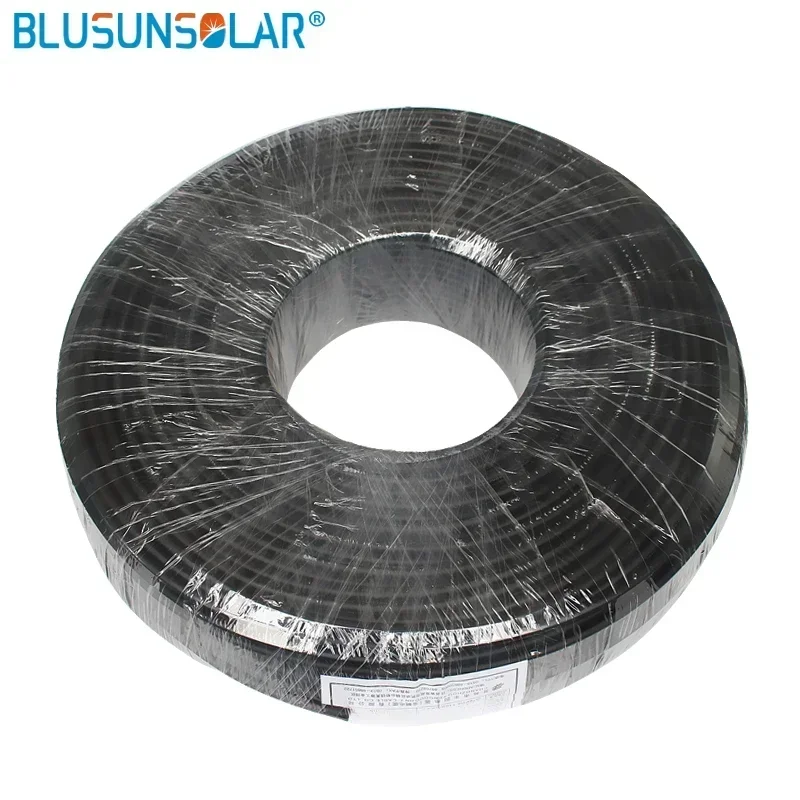

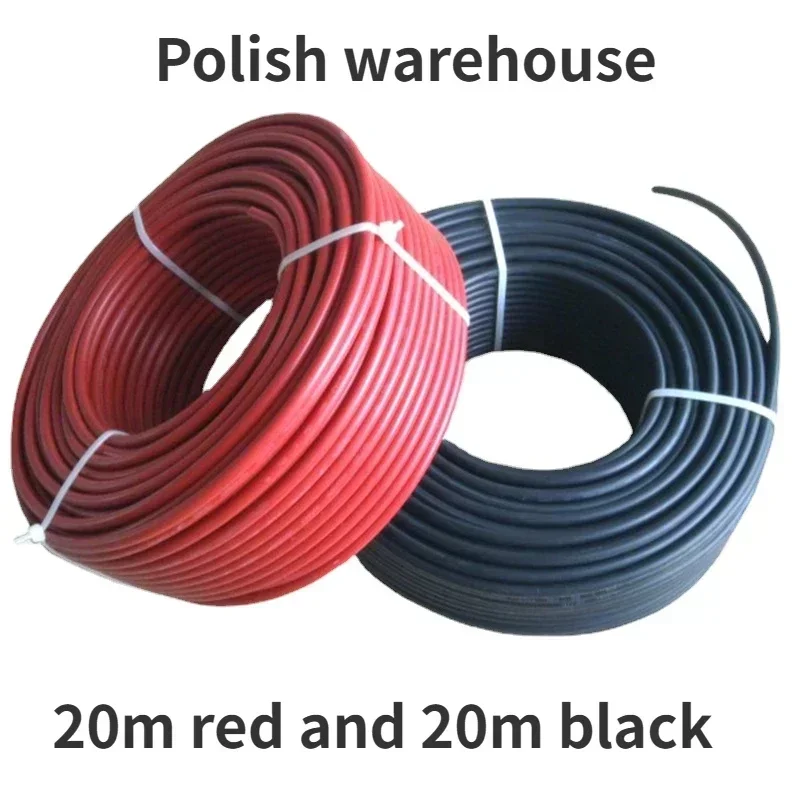

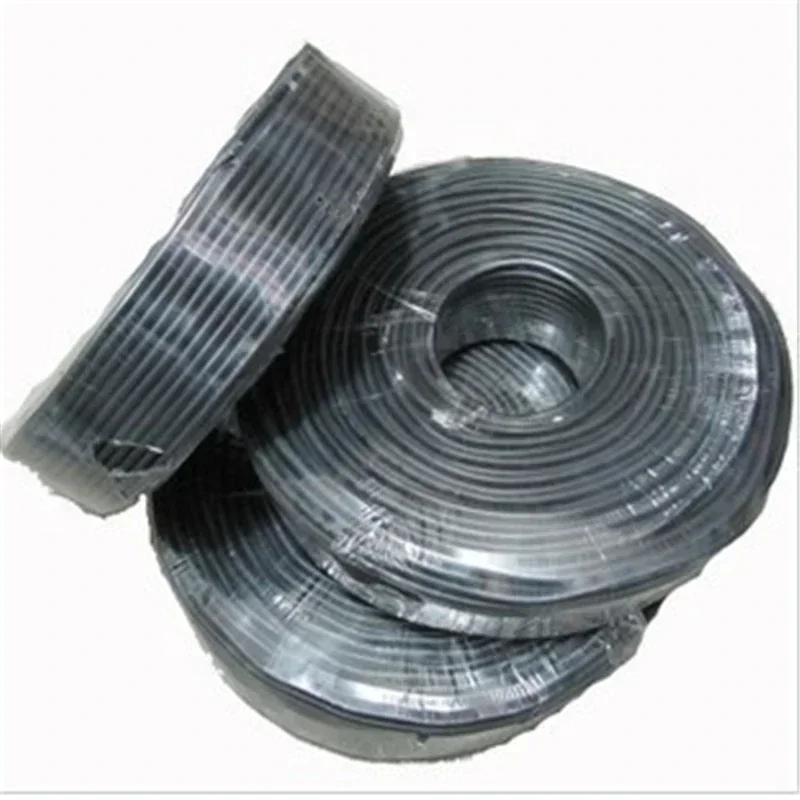

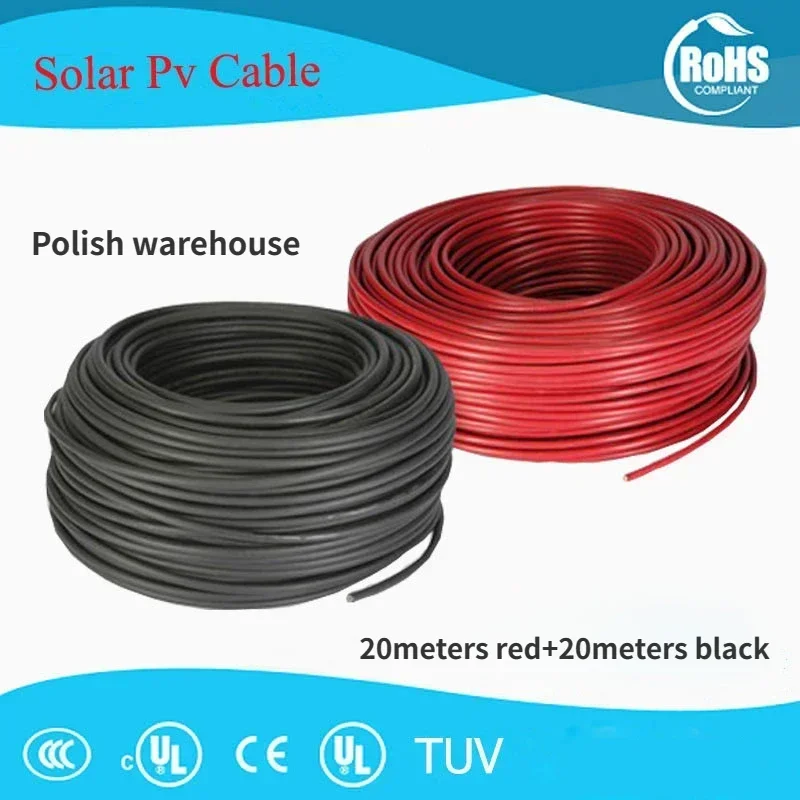

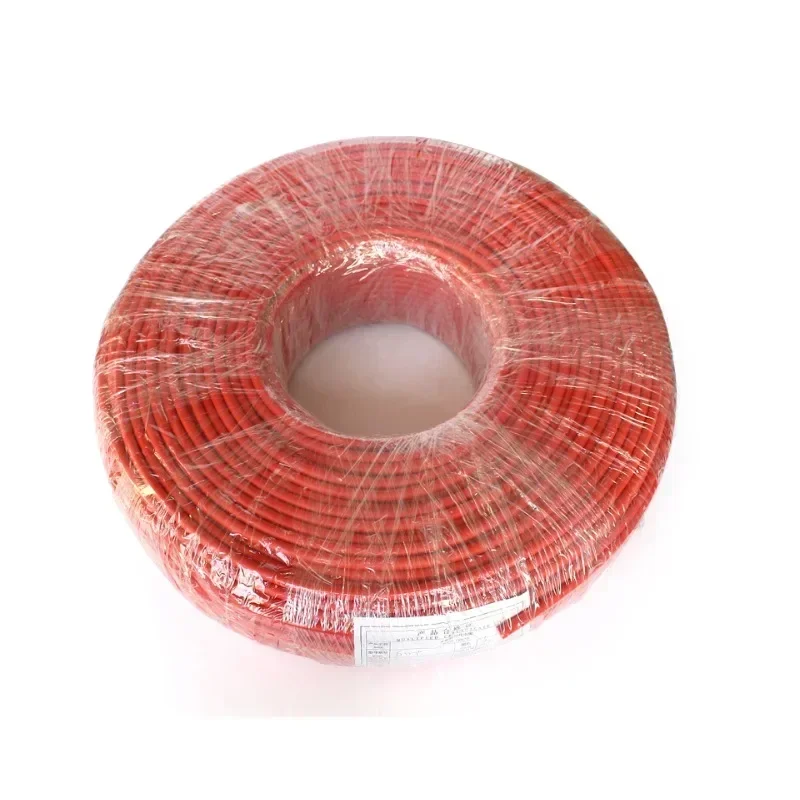

BLUSUNSOLAR 40meters/Set 1×4/6mm2 Solar Cable Wholesale Solar Wire for Solar Power Connector,12 /10AWG PV Cable 20 Red+20 Black
Price range: د.ع53,000.00 through د.ع78,000.00
- Hign-concerned Chemical: None
- is_customized: Yes
- Jacket: PVC
- Conductor Material: Copper
- Application: Construction
- Type: High Voltage
- Insulation Material: XLPE
- Model Number: 1×4.0mm2/6.0mm2 Solar cable
- Brand Name: BLUSUNSOLAR
- Origin: Mainland China
- Certification: CE
- Color: Black
- Per roll: 250 meter
- Delivery time: 7 days
- Size: 4.0 mm2/6.0mm2 sq
specifications:4MM2/12AWG
6MM2/10AWG
1.Rating:Voltage: 600/1000V Temperature:-40degC– 90degC
2. Description: (1)Conductor: Tinned annealed copper
(2)Insulation:120degC XLPE , black
(3)Jacket:120degC XLPE , black
3.Marking:TUumlV 2 PfG 1169 PV1-F 1times4mm2
1.Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007in Rhein TUV company German).
2.No-haogen PV-Cable Type:
PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.
3. Application:
Applied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety.
4.Cable Characteristics
|
MODEL |
PV1-F |
|
Conductor |
Tinned copper wire,class 5 (as per IEC 60228) |
|
Insulation |
No Halogen PO insulation |
|
Sheath |
No Halogen PO sheath |
|
rated voltage |
AC 0.6/1KV |
|
|
DC 1.8KV |
|
Temperature range |
-40degC~+90degC,dry/ humidity |
|
Max.working temperature of conductor |
120degC |
|
During short circuit |
200degC |
|
Standard |
EN 2PFG 1169 |
